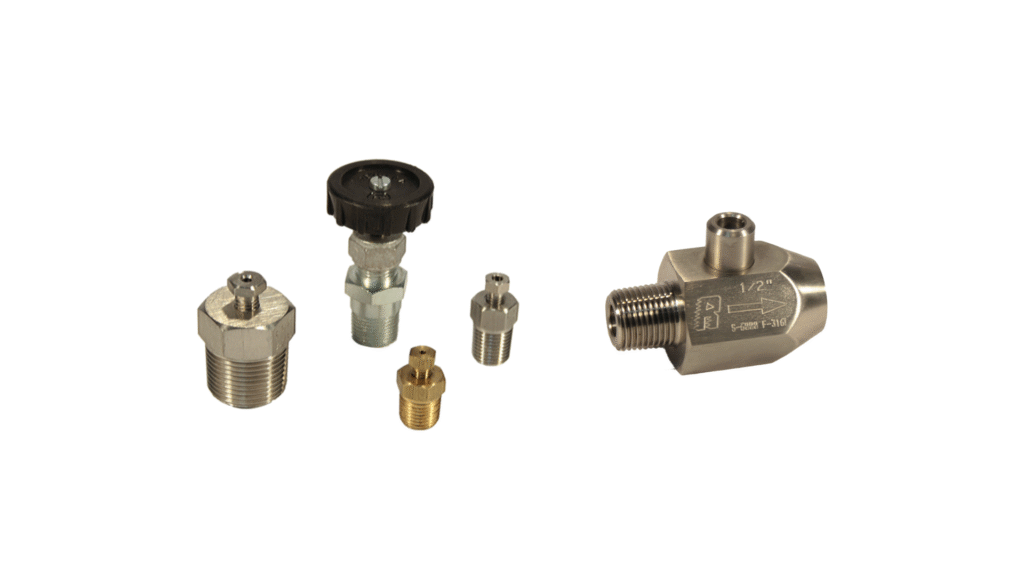

High pressure drain plug with bleeder and Pressure Dampener
High pressure drain plug with bleeder
Plugs for manual drain, suitable for installation in pots and condensate separation tanks.
Opening with a screw or handwheel with safety packing system .
Both models are available in different sizes: 1/8 , 1/4 and 1/2 in NPT and BSPT threads.
It is operated by a handwheel or screw drive.
PN: 255 Bar
Pressure test: 350 Bar
Pressure Dampener:
Dampener valves are designed to control sudden pressure variations to protect the pressure gauges and sensitive measuring elements.
The regulation is performed by a high-precision screw that can adjust the pressure.
Do you need more info? Here you can download the technical datasheet of this product.
High pressure drain plug with bleeder:
Working pressure: 255 Bar and Test pressure: 350 Bar
Pressure dampener:
Versions for high and low pressure.
High pressure drain plug with bleeder: 1/8, 1/4 and 1/2
High pressure drain plug with bleeder:
NPT (ANSI 1.20.1), BSP or Cylindrical GAS (DIN 259), BSPT ISO7 / R
Pressure Dampener:
They are made in 1/2 and 1/4 threaded connections in BSP and NPT
High pressure drain plug with bleeder:
Carbon Steel, 316 / 316L Stainless Steel as standard and upon request in Brass, Duplex, Super duplex, Hastelloy, Monel, among others.
Pressure Dampener:
High pressure drain plug with bleeder: GRAFOIL or PTFE. Upon request, it can be supplied in other materials.
High pressure drain plug with bleeder: metal-metal.
High pressure drain plug with bleeder: If you need other connections, materials, packing or other modifications, we can manufacture it to measure for you. Make your inquiry here.
High pressure drain plug with bleeder:
Pressure Dampener:
The AC and SS series are intended for high-pressure dampers up to 400 bar. The LA series in Brass is for medium and low pressure up to 153 bar.
Nitrile packed (NBR) up to 100ºC (212ºF). Optionally, it can be supplied in Viton (FKM) up to 200 ºC (329 ºF)
High pressure drain plug with bleeder:
– Purge pressurized pipes without fear as these drain plugs can withstand high pressure.. Improve the quality and safety of your facilities.
– The drain plug is easy to use.
– Save time by having a quick way to purge pressurized tubing
Pressure Dampener:
Even the best manometers and instruments are of no use if damaged or destroyed. The Redfluid pressure dampener provides an economical solution to protect manometers and instrumentation equipment from the effects of sudden pressure variations.
High pressure drain plug with bleeder:
Pressure Dampener:
High pressure drain plug with bleeder:
Pressure Dampener:
High pressure drain plug with bleeder:
Pressure Dampener:
Do you need more info?
If you wish, you can also contact us to ask for more information or place an order:
